What We Do

Reduce Losses

Transfer the product to the second phase with different physical and chemical properties in time, which can reduce the product loss caused by hydrolysis.

Isolated Product

Separation of products from latent degradation processes (metabolic or microbiological processes).

Production capacity

High separation efficiency and large production capacity

Easy to operate

Fast mass transfer, short production cycle, convenient for continuous operation. It is easy to realize computer control.

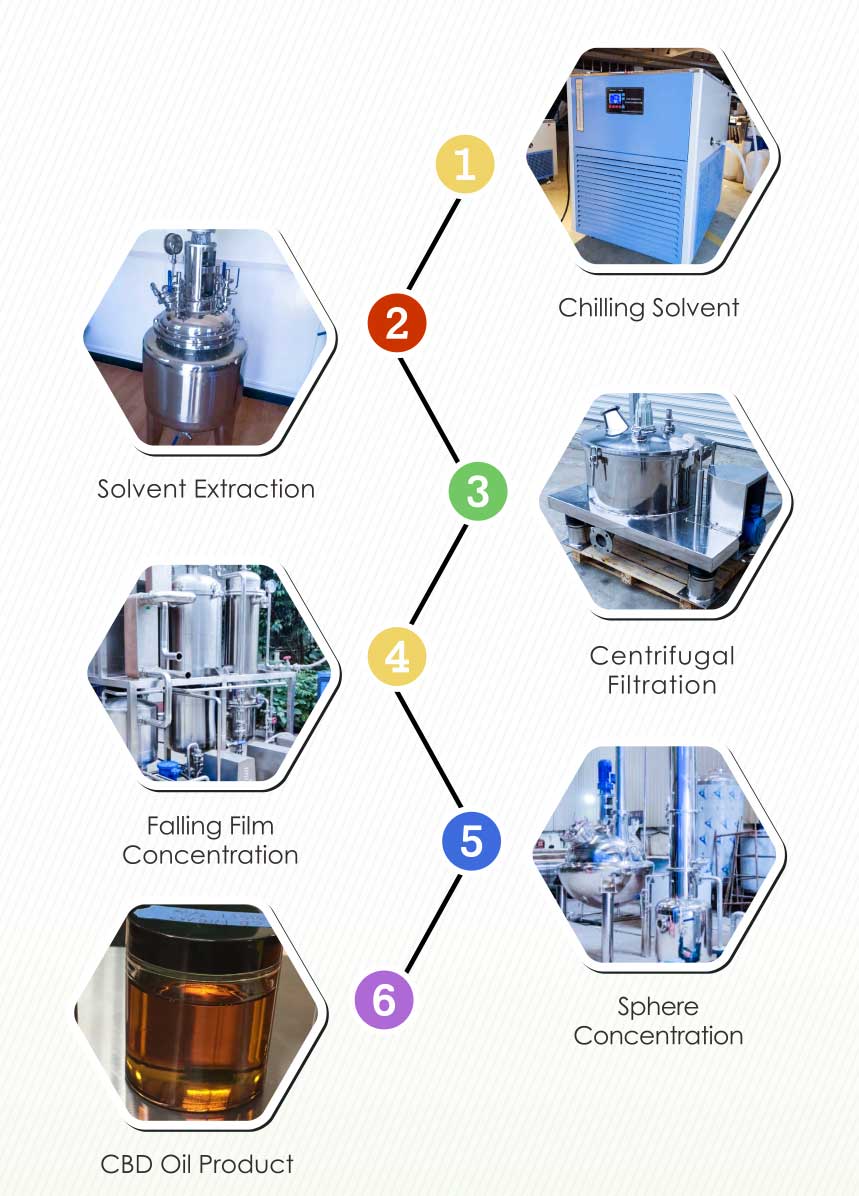

Our Process

Chilling Solvent -> Solvent Extraction -> Centrifugal Filtration -> Falling Film Concentration -> Sphere Concentration -> CBD Oil Product.

First step

Solvent extraction is a kind of material addition (solvent) separation process, so the key is to choose a suitable solvent. Follow a simple rule: "the similarity is easy to dissolve in the similarity".

Second step

Centrifugal filtration is professional designed for the solid liquid separation.Centrifugal filtration takes centrifugal force as a driving force, adding suspension into the perforated drum with filtering medium, solid particles trapped on filter media, liquid flowing through the cake layer and outflowing, and finally completes filtration operation separated from filtrate and filter cake.

Technological advantages of our solvent extraction equipment

（1）Selective
（2）It can be combined with other purification steps (such as crystallization and distillation)
（3）Transfer the product to the second phase with different physical and chemical properties in time, which can reduce the product loss caused by hydrolysis.
（4）Separation of products from latent degradation processes (metabolic or microbiological processes)
（5）Applicable to different scales
（6）Fast mass transfer, short production cycle, convenient for continuous operation. It is easy to realize computer control.
（7）High separation efficiency and large production capacity

Parameter

Type Chiller Extractor Centrifugal filter Buffer tank Cloth bag filter Buffer tank Falling evaporation unit Pipe system Sphere evaporation unit
50L*2

50L/-60℃

50L

PSB650

200L

3ton/h



200kg/h

SS304

320L
100L*2

100L/-60℃

 100L PSB800 200L 3ton/h 200L 200kg/h SS304 320L
250L*2

300L/-60℃

 250L

PSB1200

 500L 5ton/h 500L

600kg/h

 SS304 320L
500L*2

500L/-60℃

 500L PSB1200 1000L 5ton/h 1000L 600kg/h SS304 320L
1000L*2

500L/-60℃

 1000L PSB1200 2000L 5ton/h 2000L 600kg/h SS304 320L

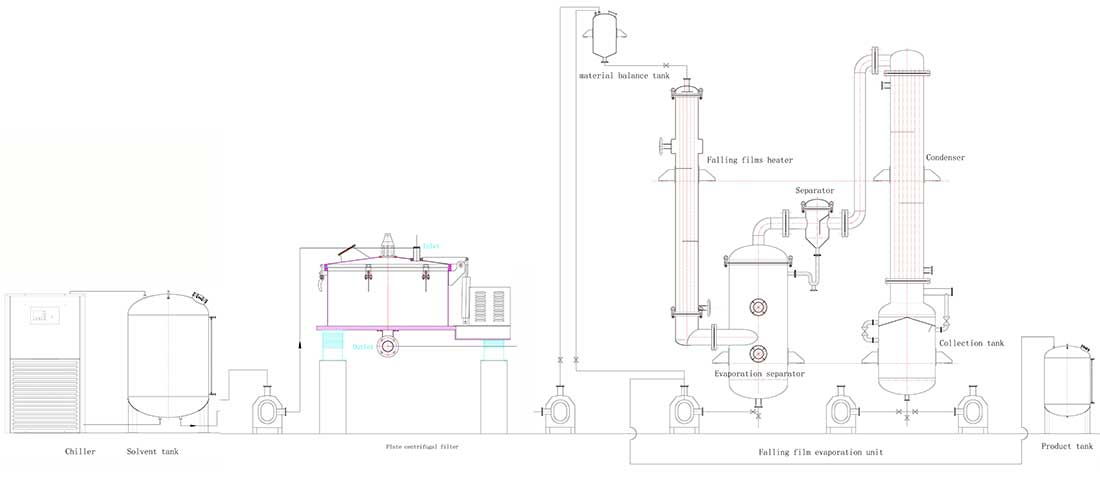

Process Flow Diagram-cannabis Extraction

When a selected solvent is added to a liquid mixture, due to the different solubility of different components in the same solvent, the required components can be separated. This operation process is called extraction.

process

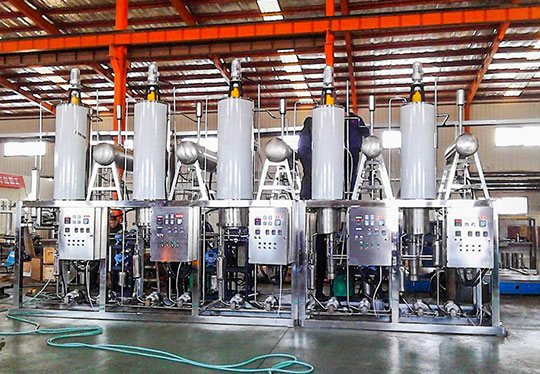

General Layout Of Scfe Production Line

process

Our Key Lab

To give our customer best service, we build a supercritical Key Lab, where has 1L, 10L, 100L, and 300L supercritical device. and so we can do extraction process and raw material production.

process

Certificate

process

Foreign Customer

process

Partners

process

Our Services

1. Make experiment:We could use our lab-scale equpment to help you to make an experiment, which will show if our equipment could solve your problems.(We will collect a little experimental expenses symbolically, after we sign a contract, we will refund you the experimental expenses )
2. Warranty of Quality:The warranty period shall be twelve months, starting from the date of the signing of Machine installation report or comletion of the contract equipment installtion.
3. Installation,Commissioning and Operational training:We will send our engineer to your factory for the installation and commissioning of the commodity and the opperational training of your personnel.

process
